One-stop and all-round foreign trade services
Cummins diesel generator sets adopt Cummins' unified global design, production, and testing standards, providing customers with reliable and integrated one - stop power generation systems. They perform excellently in normal, standby, and continuous operation conditions.
Comply with ISO8528 - 2005 and GB/T2820 - 2009 《Reciprocating Internal Combustion Engine - Driven Alternating - Current Generating Sets》 standards.
The design and manufacturing units of the generator sets have all passed ISO9001 or ISO9002 certification.
Cummins provides a 1 - year or 1000 - hour (whichever comes first) quality guarantee for the generator sets and is responsible for the maintenance of the generator sets, including the engine, generator, and control system.
The nationwide professional service network offers customers 24 - hour after - sales service and technical support.
Performance Features
Advanced design and fine manufacturing: Adapt to various harsh working conditions, with strong high - intensity and heavy - load operation capabilities.
Integrated design of cylinder block and cylinder head: Eliminates engine water leakage and oil leakage. The number of parts is about 40% less than that of other similar engines, greatly reducing the failure rate.
Cylinder liners adopt platform mesh design. Geometric design prevents oil leakage. Combined with Holset supercharger, floating oil rings and elastic gaskets are used for edge pressing and other technologies, reducing engine oil consumption.
Three - stage filtration ensures balanced microparticle dispersion level, protecting main components of the fuel system and maximizing engine service life.
Standard Configuration
Engine part: Engine, fuel filter, air filter, engine oil filter, charger, starting motor.
Generator part: Generator, air circuit breaker.
Control system: LCD display controller, electronic speed regulator.
Other parts: Water - cooled radiator, steel base, shock absorber.
Optional parts: Muffler, battery, power cable, oil machine, anti - vibration pad.
Environmental Requirements
Environmental Indicator | Parameter | Environmental Indicator | Parameter |
Altitude (m) | ≤1000 | Water quality pH value | 6.5 - 8 |
Fuel standard | 0# light diesel | Relative humidity | ≤60% |
Atmospheric pressure (kPa) | ≥89.9 | Surface salt spray resistance | ≤GB/T2423.16/2 level |
Engine oil standard | CF grade / 15W - 40 | Earthquake resistance intensity | Horizontal acceleration 0.2g, vertical acceleration 0.1g |
Inlet air temperature (℃) | ≤40 |
Generator Set Parameters
Generator Set Parameter | Value | Generator Set Parameter | Value |

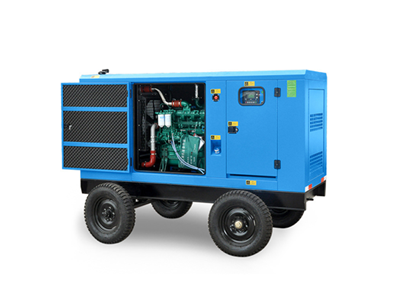

Model | Mobile power station | Transient voltage regulation rate | ≤ - 15% / + 20% |
Machine type number | KC100GF | Steady - state voltage regulation rate | ≤ ± 1% |
Standby power (KW) | 100 | Voltage stabilization time | ≤3sec |
Rated power (KW) | 90 | Voltage deviation | ≤0.5% |
Trailer size (mm) | 2900×1720×2200 | Voltage waveform distortion degree | ≤8% |
Weight (kg) | 3300 | Steady - state frequency regulation rate | ≤5% |
Rotational speed (r/min) | 1500 | Transient frequency regulation rate | ≤ - 10% / + 12% |
Fuel consumption (g/kw.h) | 211 | Frequency stabilization time | 3sec |
Noise (LP7m) (dB) | 70 - 85 | Frequency fluctuation | ≤1.5% |
Engine Parameters
Engine Parameter | Value | Engine Parameter | Value |
Engine brand | Cummins | Engine oil capacity (L) | 16.4 |
Manufacturer | Dongfeng Cummins Engine Co., Ltd. (DCEC) | Cooling liquid volume (L) | 9.9 (engine only) |
Engine model | 6BTAA5.9 - G2 | Fuel tank capacity | 123 (engine only) |
Standby power (KW) | 116 | Cooling method | Water - cooled |
Arrangement/Row form | 6 - cylinder/in - line | Cooling system | Closed water circulation |
Compression ratio | 17.5:1 | Speed regulation method | Electronic speed regulation |
Bore×Stroke (mm) | 102×120 | Start - up method | DC24V electric start |
Displacement (L) | 5.9 | Air intake method | Turbocharged, air - to - air intercooled |
Engine oil pressure (kPa) | 345 | Type | Four - stroke |
Engine oil temperature (℃) | ≤121 | Constant load steady - state fluctuation | ≤ ± 0.25% |
Power deviation | ≤ ± 5% |
Generator Parameters
Generator Parameter | Value | Generator Parameter | Value |
Generator brand | Stamford | Insulation class | H class |
Manufacturer | Stamford Electric Technology (China) Co., Ltd. | Power factor | COSφ = 0.8 lagging |
Generator model number | UCI274D | Voltage drop factor | TIF: < 50 |
Capacity | 130KVA | Connection | "Y" - type connection |
Voltage | 400V/230V | Radio interference level | THF: < 2% |
Form | Brushless, single - bearing, rotating magnetic field | Excitation system | Self - excitation, automatic voltage regulation |
Winding structure | 2/3 pitch | Compliance standard | Meets BS5000 and VDE G, N levels; GB755, BS5000 Part 3, VDE0530, NEMA MG1 - 22, IEC - 34, GSA C22 - 100, AS1359 |
Executive Standards
Standard Type | Standard Number | Standard Type | Standard Number |
Military standard | GJB 5785 - 2006 | Industry standard | JB/T 10303 - 2001 |
National standard | GB/T 2820 - 2009 | Environmental protection certification | Noise and exhaust level/waste gas level |
Telecommunications standard | YD/T 502 - 2007 | Quality system certification | YD/T502 - 2007* |
