Product Explaination

Cummins Low Noise Series Diesel Generator Set adopts Cummins global unified design, production and testing standards to provide customers with reliable and integrated power generation system. It has excellent performance in constant load, standby load and continuous operation .

 Complies with ISO8528-2005 and GB / T2820-2009 " reciprocating internal combustion engine-driven AC generator set standard.

The design and manufacturing units of generator sets have passed IS09001 or ISO9002 certification.

Cummins offers a 1-year or 1,000-hour warranty on the complete generator set, including the engine, generator, and control system.

Professional service network throughout the country to provide customers with 24-hour after-sales service and technical support.

Performance characteristics

 XPI ultra-high pressure fuel injection system, precise combustion control, wide range of low fuel consumption, more fuel-efficient

Excellent overall configuration, lighter weight and more compact structure

ECM (Electronic Control Module) to monitor and control fuel injection precisely

No need for any cold start assist device, easy to start at -15 °C ambient temperature; Auxiliary device can start at -30°C

Optimized combustion amber and high piston ring, four-valve structure, low cylinder head airway vortex ratio, smoke almost zero, reaching the perfect combination of emission and economy

Environmental requirements

Altitude (m) : ≤ 1000

Fuel Standard: Light Diesel

Atmospheric pressure (kPa): ≥ 89.9

Oil standard: CF class / 15 W-40

Inlet temperature (*C) :≤ 40

PH value of water: 6.5 ~ 8

Relative humidity: ≤ 60 %

Surface mold grade: ≤ GB / T2423.16 / 2Level

Seismic strength: horizontal acceleration 0.2g vertical acceleration 0.1g

Generator Parameters

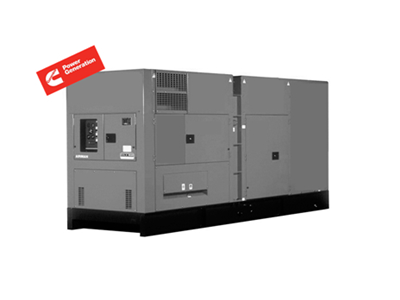

Model: silent type

Unit model : KC 350GF

Standby power (KW) : 350

Common power (KW) : 320

Unit size (mm) : 4200x1600x2100

Unit weight (kg) : 5800

Speed (r/min) : 1500

Fuel consumption ( g/kwh) :205

LP 7 m Noise (dB): 70 ~ 85

Transient voltage adjustment rate: ≤ -15% / + 20%

Steady state voltage adjustment rates s ± 1%

Voltage stability time: ≤ 3 sec

Voltage fluctuation: ≤ 0.5%

Voltage waveform distortion: ≤ 8%

Steady-state frequency adjustment rate: ≤ 5%

Transient frequency adjustment rate: ≤ -10% / +12%

Frequency stability time: 3 sec

Frequency volatility: ≤ 1.5%

Engine Parameters

Diesel engine brand : Cummins / Cummins

Manufacturer: ( DCEC) Dongfeng Cummins Engine Co Ltd

Diesel engine model: Q5213-G7

Maximum power (KW): 419

Output Power (KW): 365

Number of cylinders / arrangement: 6 cylinders / inline

Compression ratio: 17.0: 1

Cylinder diameter * stroke (mm) :130 * 1 63

Displacement (L) : 13

Oil pressure (psi): 50 ~ 70

Oil  temperature (° C): ≤ 121

Oil Capacity (L): 36,7

Cold water capacity (L): 45.42

Fuel system: Electronic controlECM / High Pressure Common Rail

Cooling method: Closed water-cooled cycle

Mode of speed control: electric speed control

Startup mode: DC24VElectric start

Input mode: increase pressure, water air cold Type: 4-stroke, 60°

Constant load steady state volatility: = ±0.25%

Rower Deviation: « ≤ ± 5%

Generator Parameters

Generator Brand: Stamford / Stanford

Manufacturer: Cummins Generator Technology (China) Limited

Generator model: S4L1S-F4 HCI444F

Capacity: 400KVA

Voltage: 400 V / 230V

Form: brushless, single bearing, rotating magnetic field

Excitation system: self-excitation, automatic voltage regulation

Winding structure : 2/3Pitch

Number of phases: three phases and four lines

Insulation Class: H

Power factor: COSQ= 0.8Hysteresis

Telephone interference coefficient : TIF: <50

Connection: Y-type connection

Telephone Harmonic Factor: THF: < 2 %

Protection rating : 1P23

Radio Interference: Meets BS800 and VDE G, N levels

 Meet standard: GB755, BS5000 Section three, VDE0530.

NEMA MG1-22, IEC-34, GSA C22-100. AS1359

Standard configuration

Engine part: engine, diesel filter, air filter, oil filter, charging machine, starting motor .

Generator part: generator, air switch.

Control system: LCD digital control device, electronic speed regulator.

Other parts: water tank radiator, steel base, damping pad.

Accessories: silencer, battery, battery wire, oil, shock absorber.

Standards of implementation

Military Standard GJB: 5785-2006

National Standard GB/T 2820 - 2002

Communication standard YD /T 502-2007

Industry standard JB /T 10303-2001

Environmental Qualification Noise and Vibration Grade A / Exhaust Gas Grade A

Tyre quality certification YD / T502-2007
