Product Description

• Cummins Low Noise Series diesel generator sets adopt Cummins' global uniform design, production and testing standards to provide customers with reliable, integrated integrated power generation systems with excellent performance during normal load, standby and continuous operation.

• Comply with ISO8528-2005 and GB/T2820-2009 * Alternator Sets Driven by Reciprocating Internal Combustion Engines".

 • The design and manufacturing units of the generator sets are certified by ISO9001 or ISO9002.

Cummins provides a 1-year or 1000-hour warranty and is responsible for the entire generator set warranty, including the engine, generator and control system.

•Professional service network throughout the country provides customers with 24-hour after-sales service and technical support.

 Performance characteristics

• Extended stroke The expansion of combustion gas is more sufficient, increasing the effective power output and ensuring low fuel consumption under strong power

• Advanced 4-valve structure has more horsepower, more thorough air combustion, low fuel consumption, and at the same time increases low-speed torque, good power and high work efficiency

• Articulated piston with forced cooling can withstand extremely high mechanical and thermal loads with good strength

• Enhanced cylinder block design Low noise and low vibration

• The center arrangement of injectors and symmetrical combustion chambers makes the mixture in the cylinder more uniform and the combustion more sufficient

• Advanced design The liter power ratio can reach 30.0kW/L, the machine structure is reasonable, and the maintenance is more convenient

Environmental requirements

Altitude (m): ≤ 1000

Fuel standard: 0# light diesel

Atmospheric pressure (kPa): 289.9

Oil standard: CF grade/15W-40

Inlet air temperature (°C): ≤40

Water quality PH value: 6.5 ~ 8

Relative humidity: ≤ 60%

Surface mold grade: sGB/T2423.16/2 grade

Seismic strength: horizontal acceleration 0.2g, vertical acceleration 0.1 g

Generator set parameters

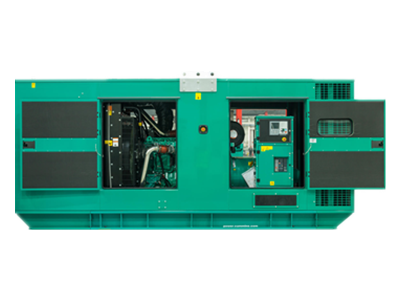

Model: Silent type

Unit model: KC200GF

Standby Power (KW): 200

Common power (KW): 180

Unit size (mm): 3600x1350x2000

Unit weight (kg): 3515

Rotational speed (r/min): 1500

Fuel consumption (g/kw.h): 207

LP7m Noise (dB): 70~85

Transient Voltage Regulation: 5-15%/+20%

Steady-state voltage regulation: ≤ $1%

Voltage Stabilization Time: ≤3sec

Voltage Volatility: ≤0.5%

Voltage waveform distortion: ≤8%

Steady-state frequency adjustment: ≤5%

Transient Frequency Regulation: s-10%/+ 12%

Frequency Stabilization Time: 3sec

Frequency Volatility: ≤1.5%

Engine parameters

Diesel engine brand: Cummins/Cummins

Manufacturer: (DCEC) Dongfeng Cummins Engine Co., Ltd

Diesel engine model: 6LTAA8.9-G2

Standby power (KW): 220

Number of cylinders/arrangement: 6 cylinders/in-line

Compression ratio: 16.0:1

Bore * stroke (mm): 114×145

Displacement (L): 8.9

Oil pressure (kPa): 276~414

Oil temperature (°C): ≤121

Oil capacity (L): 27.6

Cooling Water Capacity (L): 35

Fuel system: P1700 in-line pump

Cooling method: closed water cooling cycle

Speed regulation method: electronic speed regulation

Starting method: DC24V electric start

Air intake method: supercharged, air-to-air cooling

Type: Four-stroke

Constant load steady-state volatility: +0.25%

Power Deviation: ≤+ 5%

Generator parameters

Generator brand: Wuxi Stanford/Stanford

Manufacturer: Cummins Generator Technology (China) Co.,

Ltd

Generator model: UC/274

Capacity: 260KVA

Voltage: 400V/230V

Form: brushless, single bearing, rotating magnetic field

Excitation system: self-excitation, automatic voltage Adjustment

Winding structure: 2/3 pitch

Phase number: three phases and four lines

Insulation Grade: Class H

Power factor: COSФ=0.8 lag

Telephone Interference Factor: TIF: <50

Wiring: Y-shaped connection method

Telephone harmonic coefficient: THF: <2%

Degree of protection: IP23

Radio interference: Meets BS800 and VDE levels G and N Meet the standards: GB755, BS5000 Part III, VDE0530, NEMA MG1-22, IEC-34,GSA C22-100, AS1359

Standard configuration

Engine part: engine, diesel filter, air filter, oil filter, charger, starter motor.

Generator part generator, air switch

Control system: LCD digital display controller, electronic governor.

Other parts: water tank radiator steel base, vibration damping pad Accessories: muffler battery, battery wire, oil, anti-vibration pad.

Implementation standards

Military Standard G/B 5785-2006

National standard GB/T 2820-2002

Communication standard YD/T 502-2007

Industry standard JB/T 10303-2001

Environmental Qualification Certification Noise and

Vibration Class A/Exhaust Gas Class A Thiel Quality Certification YD/T502-2007*
