Product Description

• Cummins Low Noise Series diesel generator sets adopt Cummins' global uniform design, production and testing standards to provide customers with reliable, integrated integrated power generation systems with excellent performance during normal load, standby and continuous operation.

• Comply with ISO8528-2005 and GB/T2820-2009 * Alternator Sets Driven by Reciprocating Internal Combustion Engines".

 • The design and manufacturing units of the generator sets are certified by ISO9001 or ISO9002.

Cummins provides a 1-year or 1000-hour warranty and is responsible for the entire generator set warranty, including the engine, generator and control system.

•Professional service network throughout the country provides customers with 24-hour after-sales service and technical support.

Performance characteristics

•Cummins' patented PT fuel system, ultra-high injection pressure, to ensure good engine atomization and full combustion.

• The efficient Holset exhaust gas turbocharger has full air intake, improving efficiency, further improving combustion, and reducing engine fuel consumption.

• Air-air cooling technology ensures fuller air intake and better fuel economy.

• Replaceable wet cylinder liner with good heat dissipation effect and easy replacement.

• All model parts are highly versatile, highly serialized, and easy to maintain.

• The cylinder block and cylinder head adopt built-in pressure lubrication oil channel, which has a compact structure and low failure rate.

• Composite oil filter, easy maintenance, reduce daily maintenance costs.

Environmental requirements

Altitude (m): ≤ 1000

Fuel standard: 0# light diesel

Atmospheric pressure (kPa): 289.9

Oil standard: CF grade/15W-40

Inlet air temperature (°C): ≤40

Water quality PH value: 6.5 ~ 8

Relative humidity: ≤ 60%

Surface mold grade: sGB/T2423.16/2 grade

Seismic strength: horizontal acceleration 0.2g, vertical acceleration 0.1 g

Generator set parameters

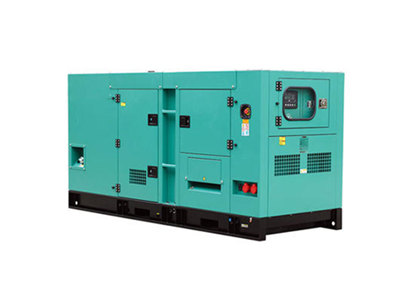

Model: Silent type

Unit model: KC300GF

Standby Power (KW): 300

Common power (KW): 280

Unit size (mm): 4200x1400x2100

Unit weight (kg):4200

Rotational speed (r/min): 1500

Fuel consumption (g/kw.h): 205

LP7m Noise (dB): 70~85

Transient Voltage Regulation: ≤-15%/+20%

Steady-state voltage regulation: ±≤ 1%

Voltage Stabilization Time: ≤3sec

Voltage Volatility: ≤0.5%

Voltage waveform distortion: ≤8%

Steady-state frequency adjustment: ≤5%

Transient Frequency Regulation: ±-10%/+ 12%

Frequency Stabilization Time: 3sec

Frequency Volatility: ≤1.5%

Engine parameters

Diesel engine brand: Cummins/Cummins

Manufacturer: (CCEC) Chongqing Cummins Engine Co., Ltd Diesel engine model: NTA855-G1A

Standby Power (KW): 291

Number of cylinders/arrangement: 6 cylinders/in-line

Compression ratio: 14.5:1

Bore * stroke (mm): 140*152

Displacement (L): 14

Oil pressure (PSI): 35 ~50

Oil temperature (°C): ≤121

Oil capacity (L): 38.6

Cooling Water Capacity (L): 60.6

Fuel system: PT pump direct injection

Cooling method: closed water cooling cycle

Speed regulation method: electronic speed regulation

Starting method: DC24V electric start

Air intake method: supercharged, intercooled

Style: 4-stroke, 60°

Constant load steady-state volatility: #0.25%

Power Deviation: ≤+5%

Generator parameters

Generator brand: Stamford

Manufacturer: Cummins Generator Technology (China) Co, Ltd

Generator model: S4L1D-E41 S4L1S-E4 HCI444E

Capacity: 360KVA 350KVA 350KVA

Voltage: 400V/230V

Form: brushless, single bearing, rotating magnetic field Excitation system: self-excitation, automatic voltage adjustment

Winding structure: 2/3 pitch

Phase number: three phases and four lines

Insulation Grade: Class H

Power factor: COSФ=0.8 lag

Telephone Interference Factor: TIF: <50

Wiring: Y-shaped connection method

Telephone harmonic coefficient: THF: <2%

Degree of protection: IP23

Radio interference: Meets BS800 and VDE levels G and N Meet the standards: GB755, BS5000 Part III, VDE0530, NEMA MG1-22, IEC-34, GSA C22-100, AS1359

Standard configuration

Engine part: engine, diesel filter, air filter, oil filter, charger, starter motor.

Generator part: generator, air switch.

Control system: LCD digital display controller, electronic governor.

Other parts: water tank radiator, steel base, vibration damping pad.

Accessories: muffler, battery, battery wire, oil, anti-vibration pad.

Implementation standards

Military Standard GJB 5785-2006

National standard GB/T 2820-2002

Communication standard YD/T 502-2007

Industry standard JB/T 10303-2001

Environmental Qualification Certification Noise and

Vibration Class A/Exhaust Gas Class A

Thiel Quality Certification YD/T502-2007*
