Innovative Design Features
Intuitive Monitoring Software
Benefit from a tailored sample management software that allows real-time tracking and monitoring of operational status, ensuring seamless workflow oversight.
Comprehensive Security Integration
Utilize the four-code integration tube system, combining RFID tags, bottom QR codes, tube barcodes, and tube digital codes for heightened security and reliability in sample management.
Streamlined User Interface
Navigate effortlessly through operations with a 15.6-inch LCD touch screen that provides an intuitive display of vital information. Accessing and managing tasks is made simple and efficient.
Free Sample Placement
Samples can be placed freely without the need to be stored in specific locations, and the relevant sample information will be updated automatically.

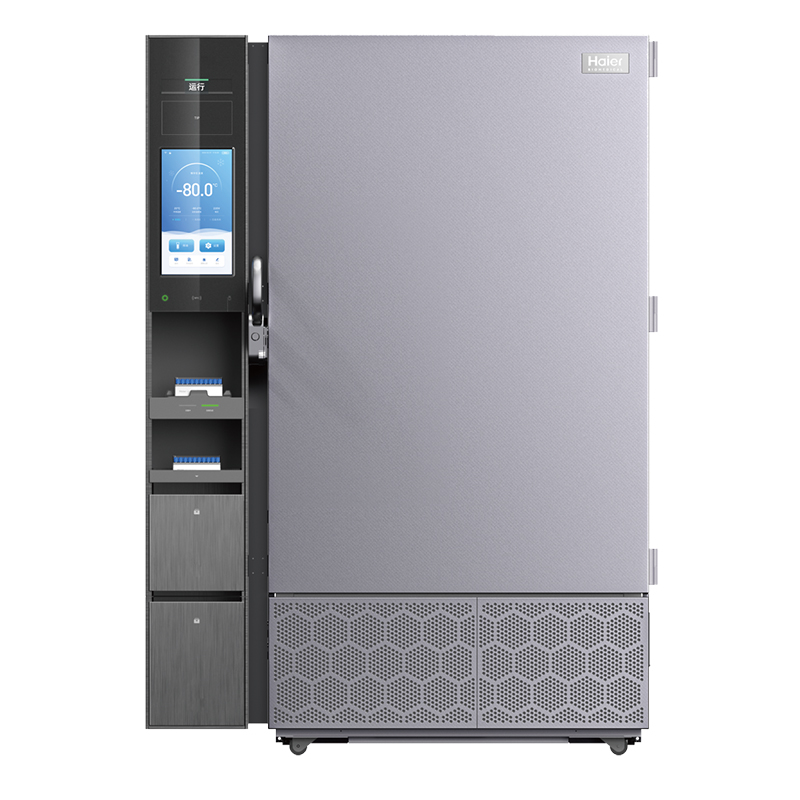

Model | DW-86L728BPSTR | ||
Technical Data | Cabinet Type | Upright | |
Climate Class | N | ||
Cooling Type | Direct Cooling | ||
Defrost Mode | Manual | ||
Refrigerant | H/C | ||
Sound Level (dB(A)) | 42 | ||
Performance | Cooling Performance (°C) | -86 | |
Temperature Range (°C) | -40~-86 | ||
Inventory Speed (Sec) | 5 | ||
Query Speed (Sec) | 2 | ||
Recognition Speed (Sec) | 3 | ||
Control | Controller | Microprocessor | |
Display | Touch Screen LCD | ||
Electrical Data | Power Supply (V/Hz) | 220/50 | |
Max Power (W) | 1700 | ||
Dimensions | Capacity (L/Cu.Ft) | 728/25.7 | |
Net/Gross Weight | kg | 555/640 | |
lbs | 1223.57/1410.96 | ||
Interior Dimension (W*D*H) | mm | 766*716*1310 | |
in | 30.2*28.2*51.6 | ||
Exterior Dimension (W*D*H) | mm | 1300*1045*1980 | |
in | 51.18*41.1*77.95 | ||
Packing Dimension (W*D*H) | mm | 1480*1175*2215 | |
in | 58.27*46.26*87.20 | ||
Cabinet Width | mm | 1300 | |
Alarms | High/Low Temperature Alarm | Y | |
Hot Condenser Alarm | Y | ||
Power Failure Alarm | Y | ||
High/Low Voltage Alarm | Y | ||
Sensor Error Alarm | Y | ||
Low Battery Alarm | Y | ||
High/Ambient Temperature Alarm | Y | ||
Door Ajar Alarm | Y | ||
Start-up/Delay | Y | ||
Accessories | Caster | Y | |
Leveling Feet | Y | ||
Porthole | Y/2 | ||
Inner Doors | 4 | ||
Shelves | 3-Stainless Steel Shelves | ||
Shelf Dimensions (W*D)(mm) | 752*650 | ||
Max. Load per Shelf (kg) | 90 | ||
Freezer Racks Quantity (2" boxes) | 20 | ||
Capacity (2" boxes) | 400 | ||
USB Interface | Y | ||
Remote Alarm | Y | ||
5V Power Supply Port | Y | ||
Temperature Chart Recorder | Optional | ||
RS232/485 Port | NA/Standard | ||
CO₂ Backup System | Optional | ||
LN₂ Backup System | Optional | ||
Others | Certification | CE | |
