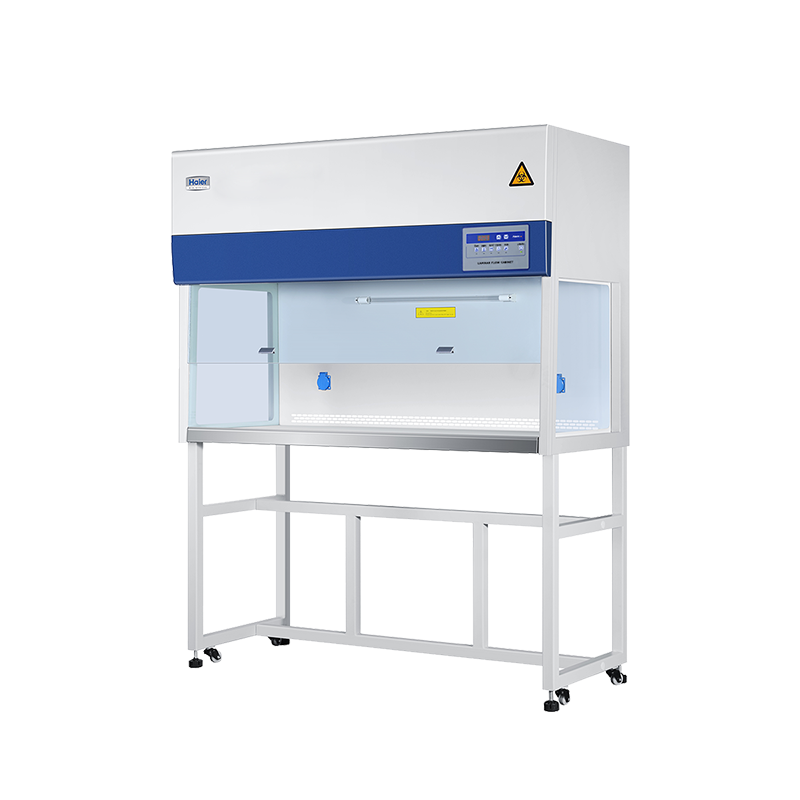

Clean Bench & Laminar Flow(Vertical) HCB-900V/1300V

Product Introduction

Featuring many technologies and authoritative testing certification for reliability

Microcomputer intelligent control panel with durable touch buttons

Multiple safety protection functions including UV delay start

Interlocking function to put an end to incorrect operation

Ergonomic design to ensure comfortable operation

Memory function to avoid repeated start-up setting

Integrated stand with universal casters

Clean Bench & Laminar Flow(Vertical) HCB-900V/1300V

Product Introduction

Featuring many technologies and authoritative testing certification for reliability

Microcomputer intelligent control panel with durable touch buttons

Multiple safety protection functions including UV delay start

Interlocking function to put an end to incorrect operation

Ergonomic design to ensure comfortable operation

Memory function to avoid repeated start-up setting

Integrated stand with universal casters

Product description

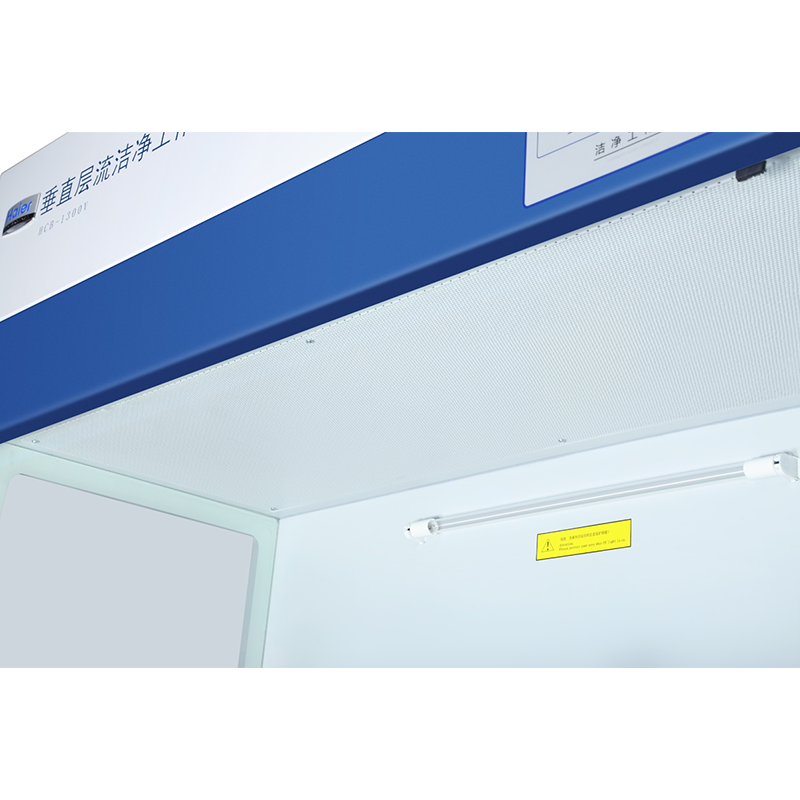

High-Efficiency Filter HEPA

High-efficiency HEPA filter with efficiency of 99.99%@0.3μm, provides ISO14644.1 Class V standard clean air, safer and reliable clean air.



304 Stainless Work Surface

The durable and corrosion-resistant 304 stainless steel work table without fixing screws reduces the accumulation of dirt, reducing the risk of contamination.

Ergonomic Design

Recessed internal lighting reduces eye fatigue.

 UV sterilization start-up delay technology prevents injury by UV light. After the UV lamp switch is pressed down, the audible and visual alarm will be activated to remind the operator to leave in time.

 Pre-set function: This technology includes a pre-set UV sterilization start-up delay function to provide improved working efficiency.



Interlocking Function

There is an interlocking function between illuminating lamp and UV lamp, the UV lamp only works when the illuminating lamp is off. If the UV lamp is on, it can be turned off by pressing the daylight lamp, reducing the risk of incorrect operation.



Memory Function

The UV lamp start-up delay time, sterilization duration, pre-set start time, fan position can be set and saved by user on request for the convenient and quick cabinet start-up.



One-key Operation

 After the UV lamp switch is pressed, the time function can be activated automatically. The default sterilization time is 30min, which can be adjusted by user within 0~99min on request;

Sterilization pre-set, when pressing the UV lamp, the pre-set lamp will light to remind user that the sterilization pre-set function has been activated and that the sterilization pre-set can be conducted.


Parameter

General
specification
ModelHCB-900VHCB-1300V
Flow TypeVerticalVerticalVertical
Power Supply(VHz)220/50220/50115/60
Power (W)120012001200
Vibration Amplitude (UM)222
Exhaust Filter Typical EfficiencyH13 HEPA
99.99%@0.3um
H13 HEPA
99.99%@0.3um
H13 HEPA
99.99%@0.3um
Average Velocity (M/S)0.2~0.40.2~0.40.2~0.4
Lighting Intensity (Lux)≥300≥300≥300
Sound Level (dB(A))606060
DimensionsSash Opening(mm)Max 310Max 310Max 310
Net/Gross Weightkg115/145145/171145/171
lbs254/319320/376320/376
Internal Dimensions (W*D*H)mm900×530×5201300×530×5201300×530×520
in35.4×20.9×20.551.2×20.9×20.551.2×20.9×20.5
External Dimension (W*D*H)mm970×630×17301370×630×17301370×630×1730
in38.2×24.8×68.153.9×24.8×68.153.9×24.8×68.1
Packing Dimensions (W*D*H)mm1100×750×12901510×770×12801510×770×1280
in43.3×29.5×50.859.4×30.3×50.459.4×30.3×50.4
Support Stand(mm)755mm (standard)755mm (standard)755mm (standard)
Container Load (20'40'40'H)15/33/3310/22/2210/22/22
accessoriesUV LampYYY

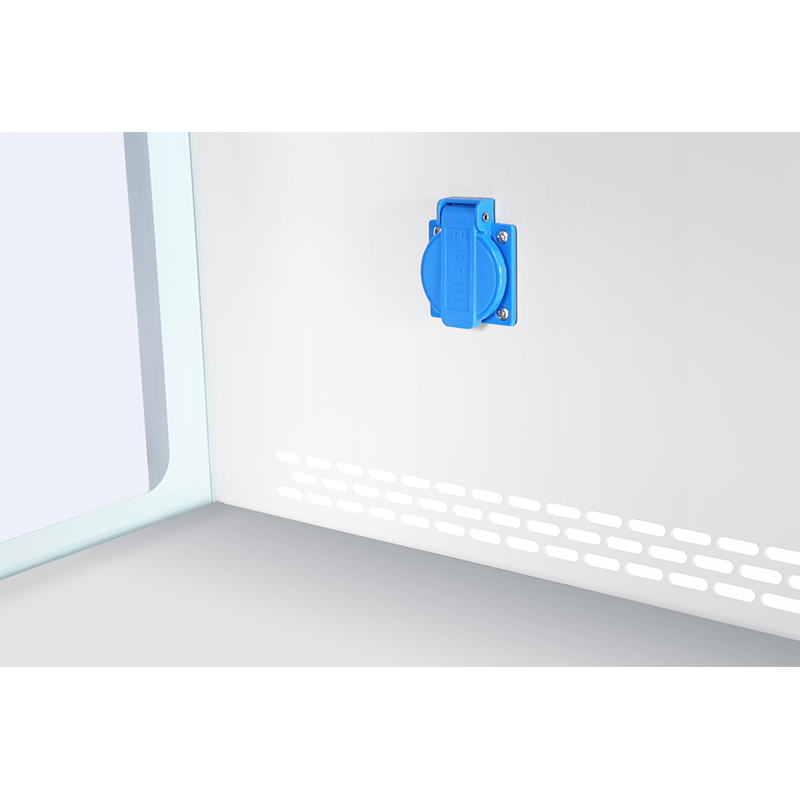

Power Outlet Socket2 Sockets2 Sockets2 Sockets
Conversion SocketOptionalOptionalOptional
Cleanliness ClassificationISO 14644.1 Class 5ISO 14644.1 Class 5ISO 14644.1 Class 5
Valve PortOptionalOptionalOptional
Side Wall Service TapsOptional gas tap,
vacuum tap,
compressed air tap
and water tap
Optional gas tap,
vacuum tap, compressed air tap
and water tap
Optional gas tap,
vacuum tap,
compressed air tap
and water tap
Antimicrobial CoatingOptionalOptionalOptional
Accessories Work SurfaceOptionalOptionalOptional
Work SurfaceSingle-pieceSingle-pieceSingle-piece
Touch Screen///
Motorized Window///
Foot Switch///
ArmrestYYY
Exhaust Duct Connection Kits///
othersCertification
CE/CE
