General Specification

Power Supply(V/Hz)

220-240/50/60

115/60

220-240/50/60

Power (VA)

1300

1300

1300

Power of Blower (W)

AC 540/625

AC 540/625

AC 540/625

Airflow Circulation

70% Downflow, 30% Exhaust

70% Downflow, 30% Exhaust

70% Downflow, 30% Exhaust

Main Filter Typical Efficiency

ULPA, U15.99.9995% @0.12μm

ULPA, U15.99.9995% @0.12μm

ULPA, U15.99.9995% @0.12μm

Exhaust Filter Typical Efficiency

HEPA, H14.99.995% @0.3μm

HEPA, H14.99.995% @0.3μm

HEPA, H14.99.995% @0.3μm

Exhaust Filter

Single

Single

Single

Filter’s Brand

AirePlus

AAF

AAF

Downflow Velocity (m/s)

0.3

0.28

0.3

Inflow Velocity (m/s)

0.53

0.55

0.53

Lighting Intensity (Lux)

≥1100

≥1200

≥1200

Sound Level (dB(A))

61

64

64

Bench or Stand Only

Stand only

Stand only

Stand only

Dimensions

Net/Gross Weight

kg

220/248

258/305

258/305

lbs

485/546.7

568.8/672.4

568.8/672.4

Internal Dimensions (W*D*H)

mm

900*610*680

1167*610*680

1167*610*680

in

35.4*24.0*26.8

45.9*24.0*26.8

45.9*24.0*26.8

External Dimensions (W*D*H)

mm

1100*820*2200

1360*820*2200

1360*820*2200

in

43.3*32.3*86.6

53.5*32.3*86.6

53.5*32.3*86.6

Packing Dimensions (W*D*H)

mm

1185*945*1750

1445*945*1720

1445*945*1720

in

46.7*37.2*68.9

56.9*37.2*67.7

56.9*37.2*67.7

Support Stand (mm)

680mm (standard).

680-900mm adjustable height (optional)

680mm (standard).

680-900mm adjustable height (optional)

680mm (standard).

680-900mm adjustable height (optional)

Sash Opening (mm)

190 (Max 490)

190 (Max 490)

190 (Max 490)

Container Load (20'/40'/40'H)

10/20/20

8/16/16

8/16/16

Alarms Functions

Alarm

Sound and Flash

Sound and Flash

Sound and Flash

Closing Fan Alarm After Door Opening

Y

Y

Y

Door Ajar

Y

Y

Y

Abnormal Inflow

Y

Y

Y

Abnormal Downflow

Y

Y

Y

Door Open More than Limit

Y

Y

Y

Filter Clogging

Y

Y

Y

Filter Damage

Y

Y

Y

Filter Lifetime Lack

Y

Y

Y

UV Light Lifetime Lack

Y

Y

Y

Accessories

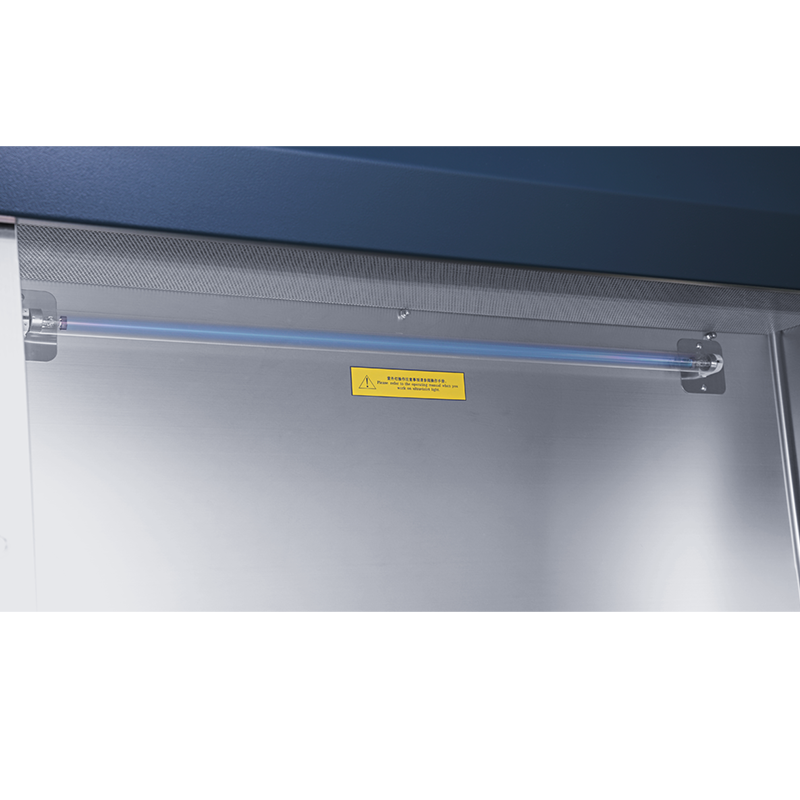

UV Lamp

Y

Y

Y

Socket

1 Socket

1 Socket

1 Socket

Valve Port

Standard with 2 Valve Port

Standard with 2 Valve Port

Standard with 2 Valve Port

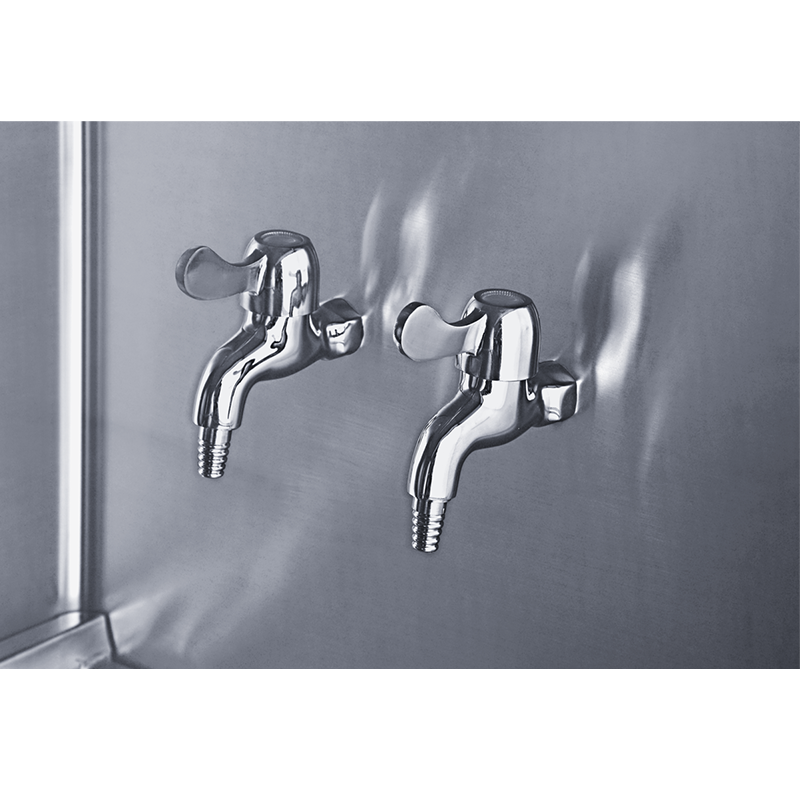

Side Wall Service Taps

Standard gas tap and vacuum Tap; optional compressed air tap and water tap

Standard gas tap and vacuum Tap; optional compressed air tap and water tap

Standard gas tap and vacuum Tap; optional compressed air tap and water tap

Antimicrobial Coating

Optional

Optional

Optional

316SS Work Surface

Optional

Optional

Optional

Work Surface

One-piece

One-piece

One-piece

Touch Screen

N

N

N

Motorized Window

N

N

N

Foot Switch

N

N

N

Armrest

Y

Y

Y

Exhaust Dust Connection Kits

Optional

Optional

Optional

Others

Certification

CE, TUV

/

CE, TUV
